- Use thread sealant for proper installation. Thread tape is not recommended
- Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs.
Product Info
Important Notes
Description
VIAIR Mounted Systems (VMS) are high quality on board compressed air systems designed to provide high CFM flow and fast fill time with unsurpassed durability. These systems come with everything that is necessary to install a fully functioning on board air system. VMS can be used for tire inflation, air tools, air horns, air lockers, air bags and inflatables of all kinds.
Product Details
- (2) 485C Compressors w/ Thermal Overload Protectors
- Complete dual wiring harness w/ 80A fuse holder
- Air Locker compatible
- Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
- Designed to be air tank ready (Air tank optional)
- 8-Port Billet Manifold
- Pro Series Air Source Relocation Kit
- Illuminated Rocker Switch
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 46-Amps
- Ingress Protection Rating: IP67
- Max Ambient Temp: +158°F
- Min Ambient Temp: -40°F
- Dimensions: 10.63"L x 4.1"W x 6.44"H (Each Unit)
- Net Weight: 30 lbs.
Parts Included

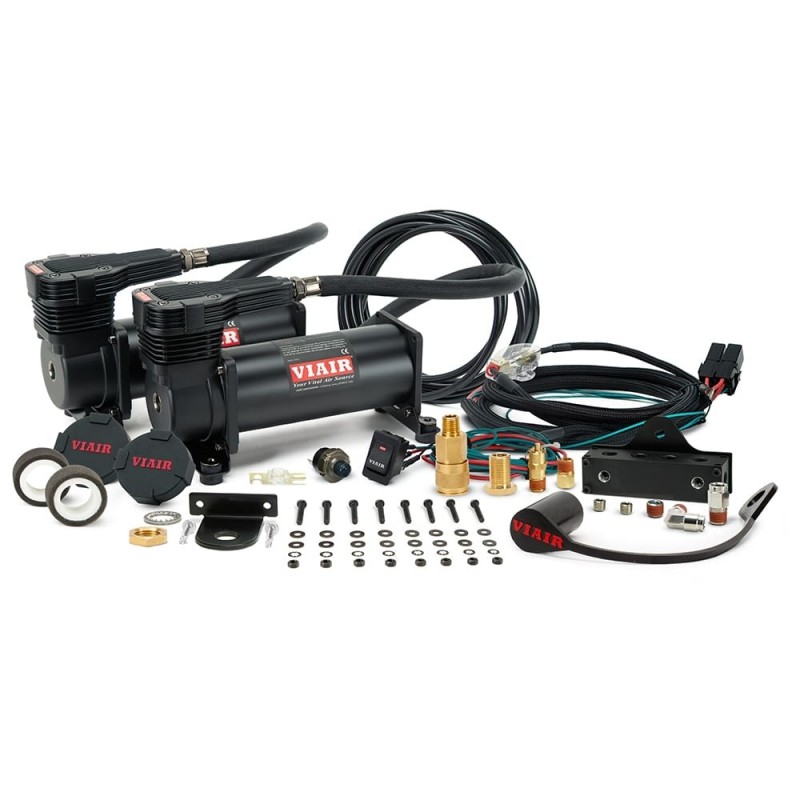

- (2) 485c Stealth Black Compressors w/Thermal Overload Protectors
- Complete dual wiring harness w/80A fuse holder
- Air locker compatible
- Sealed compressor with IP rating of IP67 (Waterproof/Dustproof)
- Designed to be air tank ready (air tank optional)
- 8-port Billet Manifold
- Pro Series Air Source Relocation Kit
- Illuminated Rocker Switch
Additional Info
| SKU | BKTN-485DB01 |
|---|---|
| Manufacturer Part Number | 485DB01 |
| Variant ID | 8556138 |
| Brand | Viair |
| Part Type | Air Compressor Kit |
| SKU Aliases | 485DB01 |
